Current location: Home»Realgiant Product » Crystal Oscillator » 7050 SMD 6PAD OSC » 7050SMD 6PAD OSCILLATORS

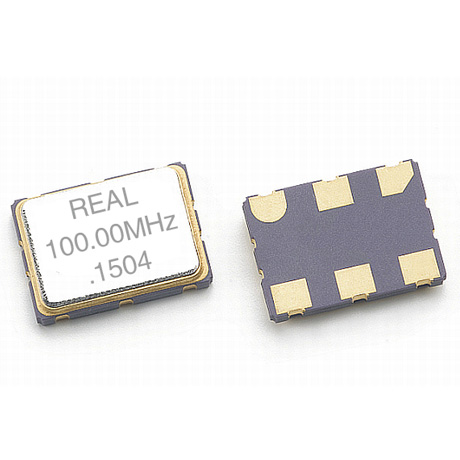

Product Name：7050SMD 6PAD OSCILLATORS
- Product Category：
- Product Details：
Features:
． Excellent environmental capability
．Frequency adjustable
．Supply voltage:3.3V or 5V
．Low power consumption
．High accuracy and high reliability - E-MAIL:
-
Specification:
| Model | 7050 6PAD | |
| Frequency Range | MHz | 1.0~ 52.0MHz |
| Frequency Stability | PPM | ±30 ~ ±50 min.(2.5±2.0 V DC) |
| Environmental Condition | ||
| Operating Temp Range | °C | 0 ~ 70 |
| Storage Temp Range | °C | -40 ~ 85 |
| Frequency Stability | ±10 ~ ±100 max | |
| Power Supply Voltage | VDC | 5.0V±10% or 3.3V±10 |
| Output Symmetry | % | 40% ~ 60% or 45% ~ 55% |
| Input Current | mA max | 30 mA max |
| Output Load | 5TTL or 15 pF | |
| Rise and Fall Time | ns max | 5.0 ns max |

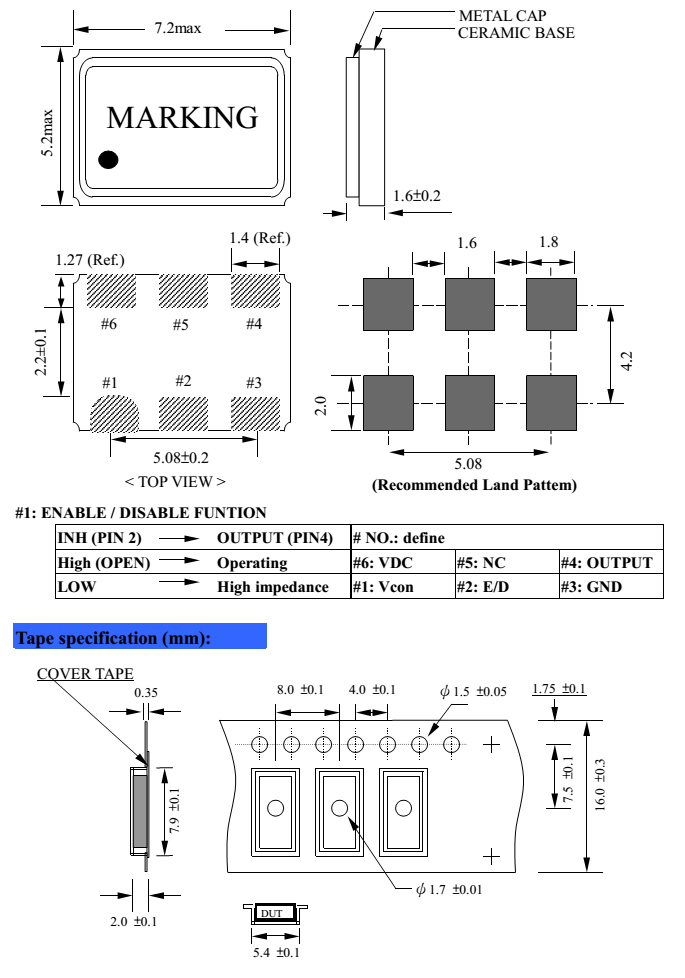

Dimensions:
.jpg "Dimensions:")
.jpg "Dimensions:")
Contact Realgiant
Beijing Realgiant Technology Development Co., Ltd.
Tel: +86-10-64156778
Fax: +86-10-64156778
Email: sales@crystal-bj.com
Add: No. 9# Chaowai North Street,Chaoyang District, BEIJING
