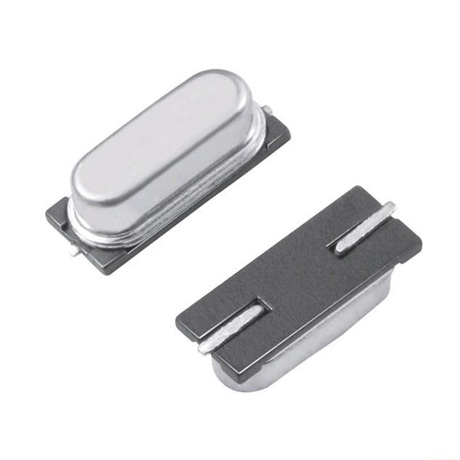

Product Name：HC-49SMD Series Crystal Resonator
- Product Category：
- Product Details：
Features:
． Low cost
． Industry standard package
． High reliability and stability crystal
． Wide frequency range and calibration tolerances
． Available
． Rohs compliant / Pb free - E-MAIL:
-
Specification:
| Model | HC-49SMD |
| Frequency Range | 3.570 ~ 100.000MHz |
| Frequency Tolerance at 25°C±2°C | ±20 ~ ±50ppm(TYP.) |
| Frequency Stability Over Operating Temp Range | ±10 ~ ±50ppm(TYP.) |
| Operating Temp Range | -10°C ~+60°C, -20°C ~+70°C, -40°C ~+85°C or customer requirement |
| Load Capacitance | 8pF ~32pf,series or special |
| Shunt Capacitance | 7pf Max |
| Drivel Level | 0.1uW~1000Uw(TYP:100uw) |
| Insulation Resistance | 500MΩ min / DC 100V±15V |
| Oscillation Mode | Fundamental,3rd & 5th overtone |
| Measure Instrument | S&A 250B |
Equivalent Series Resistance(ESR)VS Frequency:
| Frequency(MHz) | Oscillation Mode | HC-49SMD |
| 3.57 ~ 3.79 | Fundamental | 180Ω max |
| 3.8 ~ 4.49 | Fundamental | 150Ω |
| 4.5 ~ 5.99 | Fundamental | 120Ω |
| 6.0 ~ 7.99 | Fundamental | 100Ω |
| 8.0 ~ 9.99 | Fundamental | 80Ω |
| 10.0 ~ 11.99 | Fundamental | 70Ω |
| 12.0 ~ 15.99 | Fundamental | 60Ω |
| 16.0 ~ 19.99 | Fundamental | 50Ω |
| 20.0 ~ 39.99 | Fundamental | 40Ω |
| 26.0 ~ 39.99 | 3rd overtone | 100Ω |
| 40.0 ~ 70.0 | 3rd overtone | 80Ω |
| 70.0 ~ 100.0 | 3rd overtone | 100Ω |

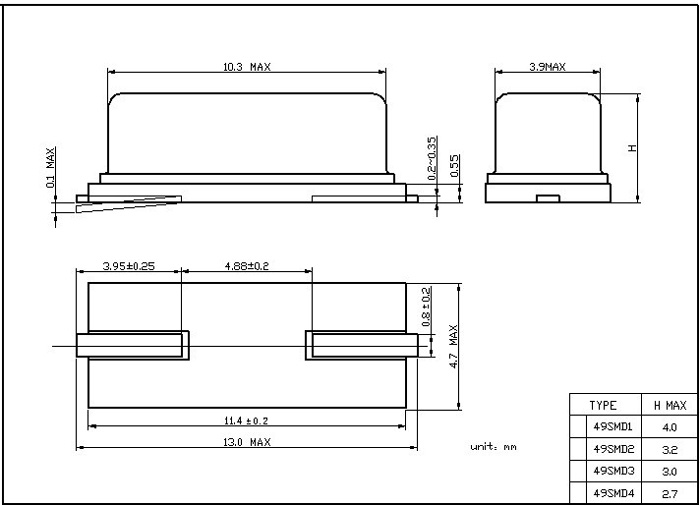

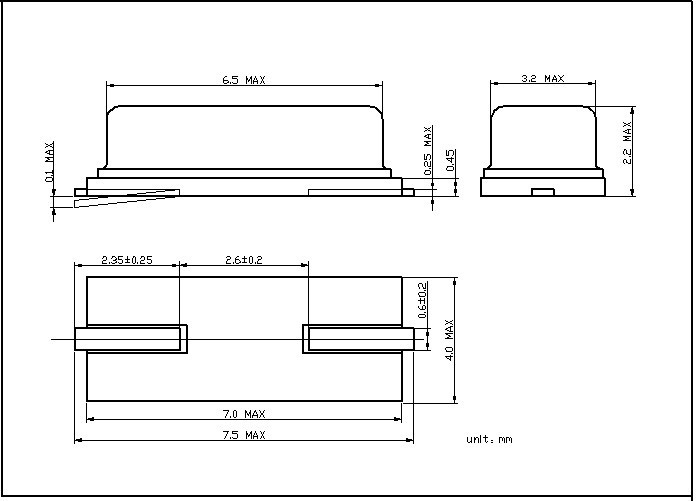

Dimensions: 49SMD
