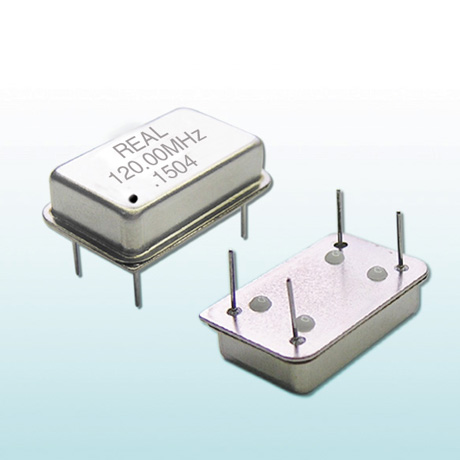

Product Name：VCXO DIP14
- Product Category：
- Product Details：
Features:
． Low Power Consumption
． Broad Voltage Control Range
． Mass production with well uniformity
． Custom build capability
． 14-stitch full-size
． Wide frequency range
． Lead-free green product - E-MAIL:
-
Specification:
| Parameter | Min | Typ. | Max | Unit | Condition | Note | |||
| Frequency Stability | |||||||||
| Frequency | 2.048 | 122.88 | MHz | ||||||
| Initial Frequency Accuracy | -10 | +10 | ppm | Vc=Vcc/2@25℃, | |||||
| Supply Variation | -3 | +3 | ppm | Vcc±5， @25℃ | |||||
| Load Variation | -2 | +2 | ppm | RL±10， @25℃ | |||||
| Aging | First year | -3 | +3 | ppm | |||||
| Temperature Stability | -25 | +25 | ppm | -40℃～+85@25℃ | |||||
| Start up time | 20 | ms | |||||||
| Supply Voltage/Current | |||||||||
| Voltage Supply | 3.135 | 3.3 | 3.465 | V | |||||
| 4.75 | 5 | 5.25 | V | ||||||
| Operating Current | 40 | mA | Max | ||||||
| 20 | mA | Standard | |||||||
| Output Characteristics | |||||||||
| LVCMOS | Load | 15 | pF | ||||||
| Output Level(VOL) |
0.3 | V | Supply Voltage3.3V | ||||||
| 0.5 | V | Supply Voltage 5V | |||||||
| Output Level(VOH) |
3.0 | V | Supply Voltage3.3V | ||||||
| 4.5 | V | Supply Voltage 5V | |||||||
| Duty Cycle | 45 | 55 | % | ||||||
| Rise Time/ Fall Timel | 5 | ns | Output Freq≤50MHz | ||||||
| 1 | ns | Output Freq≤50MHz | |||||||
| Phase Noise | |||||||||
| Phase Noise | -64 | dBc/Hz | @10Hz | ||||||
| -95 | @100Hz | ||||||||
| -123 | @1Hz | ||||||||
| -140 | @10Hz | ||||||||
| -146 | @100Hz | ||||||||
| -146 | @1MHz | ||||||||
| Voltage Control Characteristics | |||||||||
| Control Voltage Range | 0 | 1.65 | 3.3 | V | Supply Voltage3.3V | ||||
| 0.5 | 2.5 | 4.5 | V | Supply Voltage5V | |||||
| Frequency tuning range | -150 | -60 | ppm | Vc=0V/0.5V | |||||
| -10 | +10 | ppm | Vc=Vcc/2 | ||||||
| +60 | +150 | ppm | Vc=3.3V/4.5V | ||||||
| Slope | |||||||||
| Linearity | -10 | +10 | % | ||||||
| Input Impedance | 1 | MΩ | |||||||

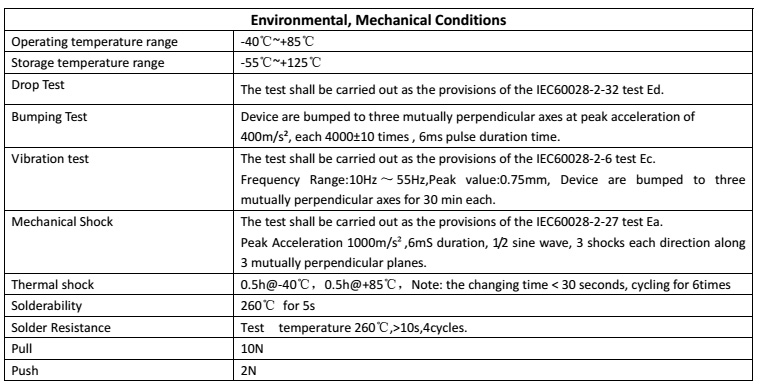

.jpg "Specification")

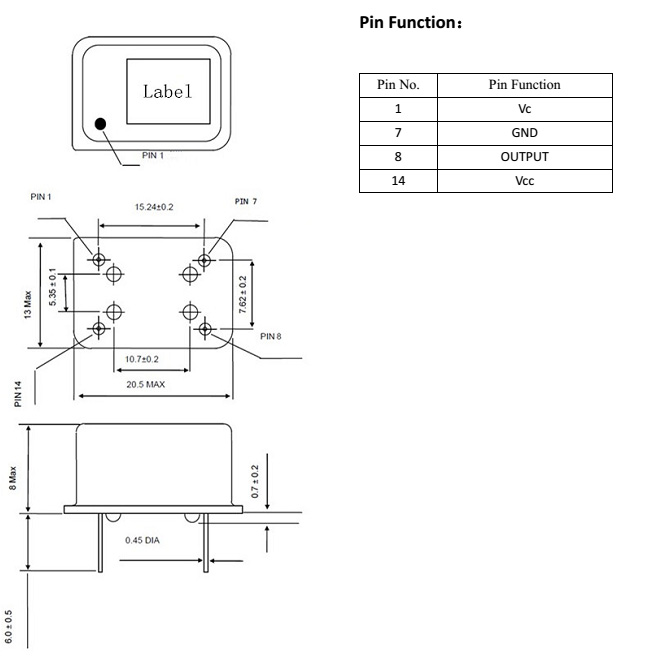

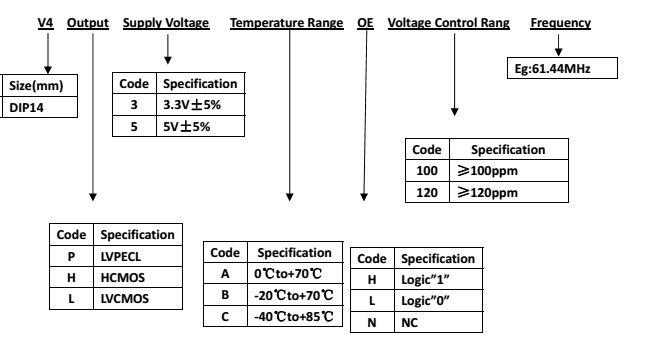

Dimensions:
