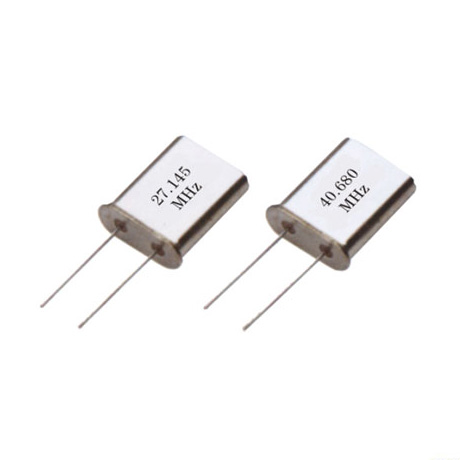

Product Name:HC-49U/49T Series Crystal Resonator

  • Product Category:
    • Product Details:
      Features:
      . Excellent aging performance
      . Mass production capability
      . High reliability design
      . RoHS Compliant / Pb Free
      . Customized as request
    • E-MAIL:

    Specification:

    Model HC-49U / 49T
    Frequency Range 1.500 ~ 160.000MHz
    Frequency Tolerance at 25°C±2°C ±10 ~ ±30ppm(TYP.)
    Frequency Stability Over Operating Temp Range ±10 ~ ±30ppm(TYP.)
    Operating Temp Range -10°C ~+60°C, -20°C ~+70°C, -40°C ~+85°C or customer requirement
    Load Capacitance 8pF ~32pf,series or special
    Shunt Capacitance 7pf Max
    Drivel Level 0.1uW~1000Uw(TYP:100uw)
    Insulation Resistance 500MΩ min / DC 100V±15V
    Oscillation Mode Fundamental,3rd & 5th overtone
    Measure Instrument S&A 250B

    Equivalent Series Resistance(ESR)VS Frequency:

    Frequency(MHz) Oscillation Mode HC-49U / 49T
    1.5~1.99 Fundamental 700Ω max
    2.0~2.99 Fundamental 500Ω
    3.0~3.19 Fundamental 300Ω
    3.2~3.99 Fundamental 150Ω
    4.0~4.49 Fundamental 90Ω
    4.5~4.99 Fundamental 70Ω
    5.0~6.99 Fundamental 50Ω
    7.0~9.99 Fundamental 35Ω
    10.0~36.0 Fundamental 25Ω
    20.0~24.99 3rd overtone 45Ω
    25.0~100.0 3rd overtone 40Ω
    70.0~160.0 5rd overtone 70Ω

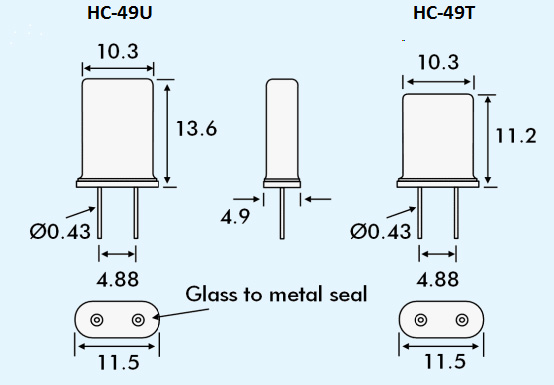

    Dimensions:

    HC-49U/49T Series Crystal Resonator
