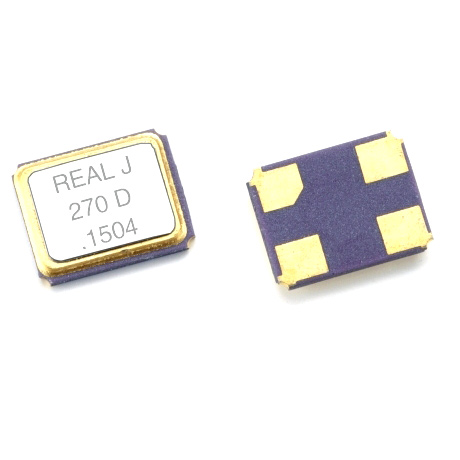

Product Name:2520SMD Series Crystal Resonator

  • Product Category:
    • Product Details:
      Features:
      . Seam welding
      . Excellent solderability
      . Automatic and perfect packing due to emboss taping
      . Excellent vibration resistance & shock resistance
      . Rohs compliant / Pb free
      . Excellent aging performance
    • E-MAIL:

    Specification:

    Model 2520 SMD
    Frequency Range 12.0 ~ 50.000MHz
    Frequency Tolerance at 25°C±2°C ±10 ~ ±100ppm(TYP.)
    Frequency Stability Over Operating Temp Range ±10 ~ ±100ppm(TYP.)
    Operating Temp Range -10°C ~+60°C,-20°C~+70°C,or customer requirement
    Storage Temp Range -40°C ~ +85°C
    Aging Rate ±3ppm/year
    Load Capacitance 6pF ~32pf,series or special
    Shunt Capacitance 7pf Max
    Drivel Level 1uW~100uW(TYP:100uW)
    Oscillation Mode Fundamental
    Measure Instrument S&A 250B



    Equivalent Series Resistance(ESR)VS Frequency:

    Frequency(MHz) Oscillation Mode 2520 SMD

            12.0~22.0

    Fundamental 130Ω max
    22.1~50.0 Fundamental 110Ω

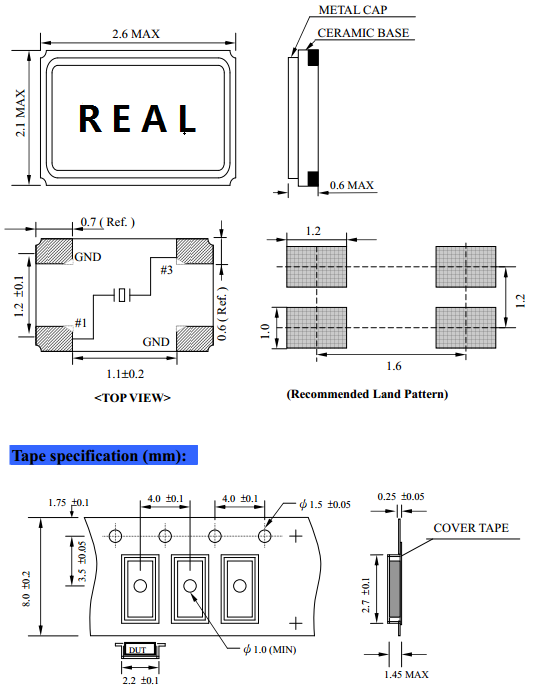

    Dimensions:

    Dimensions

    Dimensions
