Current location: Home»Realgiant Product » Crystal Oscillator » 2520 SMD » 2520 SMD OSCILLATORS SMD TYPE CERAMIC

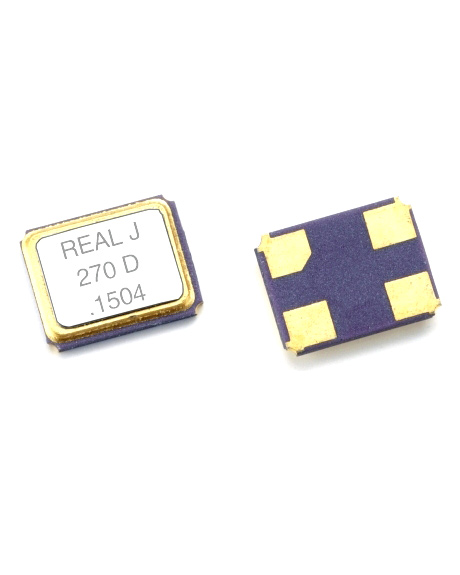

Product Name：2520 SMD OSCILLATORS SMD TYPE CERAMIC
- Product Category：
- Product Details：
Features:
． Seam welding
． Excellent solderability
． Automatic and perfect packing due to emboss taping
． Excellent vibration resistance & shock resistance
． Rohs compliant / Pb free - E-MAIL:
-
Specification:
| Model | 2520 SMD | ||
| Frequency Range | MHz | 2.0 ~ 50.000MHz | |
| Frequency Stability | ppM | A:±100 B: ±50 C:±30 D:±25 | |
| Environmental Condition | |||
| Operating Temp Range | °C | 0 ~ 70 , -40 ~ 85 | |
| Storage Temp Range | -55 ~ 125 | ||
| Output Level | CMOS | ||
| Output Symmetry | % | 40% ~ 60% (at 50%V DC) | |
| Power Supply Voltage | V DC | 2.5V±5% | 3.3V±10% |
| Input Current | |||
| 2.0 ~ 9.99 MHz | mA | 6 | 7 |
| 10.0 ~ 19.99 MHz | 8 | 7 | |
| 20.0 ~ 31.99 MHz | 8 | 12 | |
| 32.0 ~ 50.00 MHz | 20 | 20 | |
| Rise and Fall Time | |||
| 2.0 ~ 9.99 MHz | ns | 7 | 6 |
| 10.0 ~ 19.99 MHz | 7 | 6 | |
| 20.0 ~ 31.99 MHz | 6 | 5 | |
| 32.0 ~ 50.00 MHz | 9 | 5 | |
| Output Load | 15pF | ||
| AGING | ppm/Year | ±3 | |
*Inclusive of 25℃±3℃&Operating Temperature Range
*Symmetry of 45%~55% is available

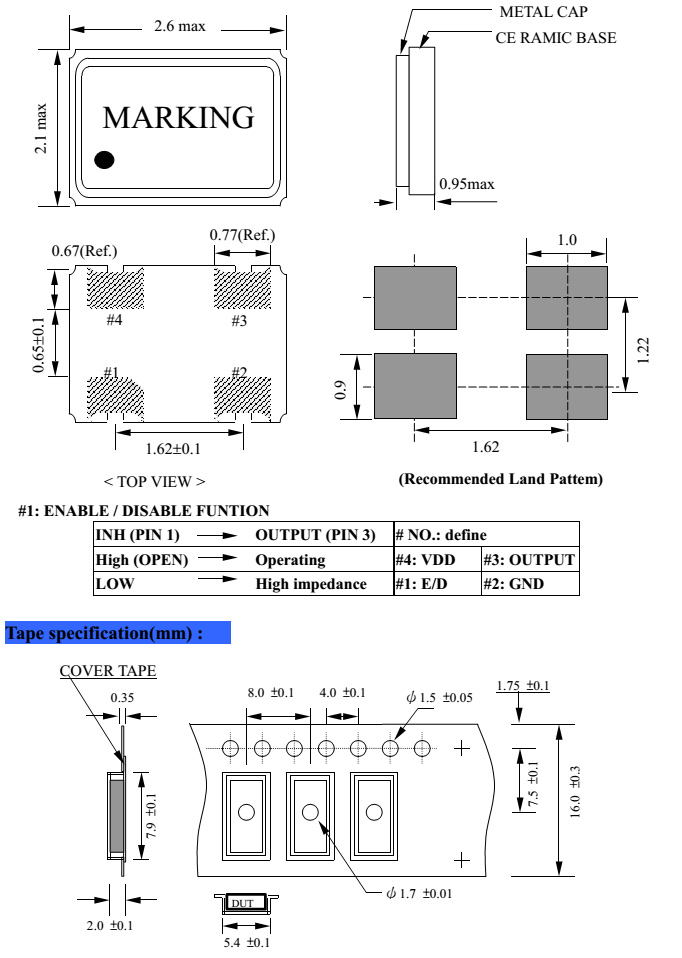

Dimensions:
