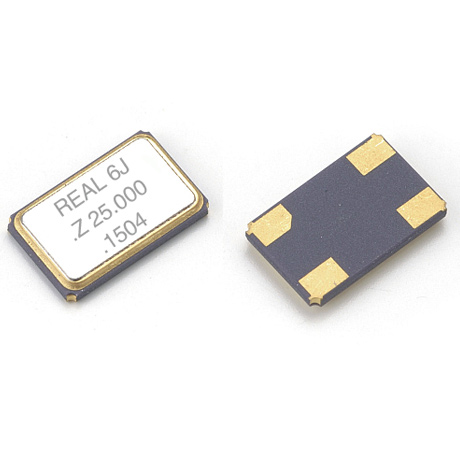

Product Name:5032 SMD OSCILLATORS SMD TYPE CERAMIC

  • Product Category:
    • Product Details:
      Features:
      . Seam welding
      . Excellent solderability
      . Automatic and perfect packing due to emboss taping
      . Excellent vibration resistance & shock resistance
      . Rohs compliant / Pb free
    • E-MAIL:

    Specification:

    Model 5032 SMD
    Frequency Range MHz 1.0 ~ 125.000MHz
    Frequency Stability ppM A:±100   B: ±50   C:±30    D:±25
    Environmental Condition
    Operating Temp Range °C 0 ~ 70 , -40 ~ 85
    Storage Temp Range   -55 ~ 125
    Output Level   CMOS
    Output Symmetry % 40% ~ 60% or 45% ~ 55%(at 55%V DC)
    Power Supply Voltage V DC 5.0V±10% 3.3V±10% 2.8V±10% 2.5V±10% 1.8V±10%
    Input Current
    1.0 ~ 9.99 MHz mA 20 7 6 6 5
    10.0 ~ 19.99 MHz 20 7 8 8 6
    20.0 ~ 31.99 MHz 25 12 8 8 6
    32.0 ~ 49.99 MHz 35 20 20 20 15
    50.0 ~ 79.99 MHz 50 25 20 20 15
    80.0 ~ 99.99 MHz 60 30   25 20
    100.0 ~ 125.0 MHz 80 40   30 25
    Rise and Fall Time
    1.0 ~ 9.99 MHz ns 15 20 5 5 5
    10.0 ~ 19.99 MHz 15 15 5 5 5
    20.0 ~ 31.99 MHz 15 10 5 5 5
    32.0 ~ 49.99 MHz 15 10 5 5 5
    50.0 ~ 79.99 MHz 10 8 5 5 4
    80.0 ~ 99.99 MHz 10 5 5 5 3
    100.0 ~ 125.0 MHz 10 4 5 5 3
    Output Load   15pF

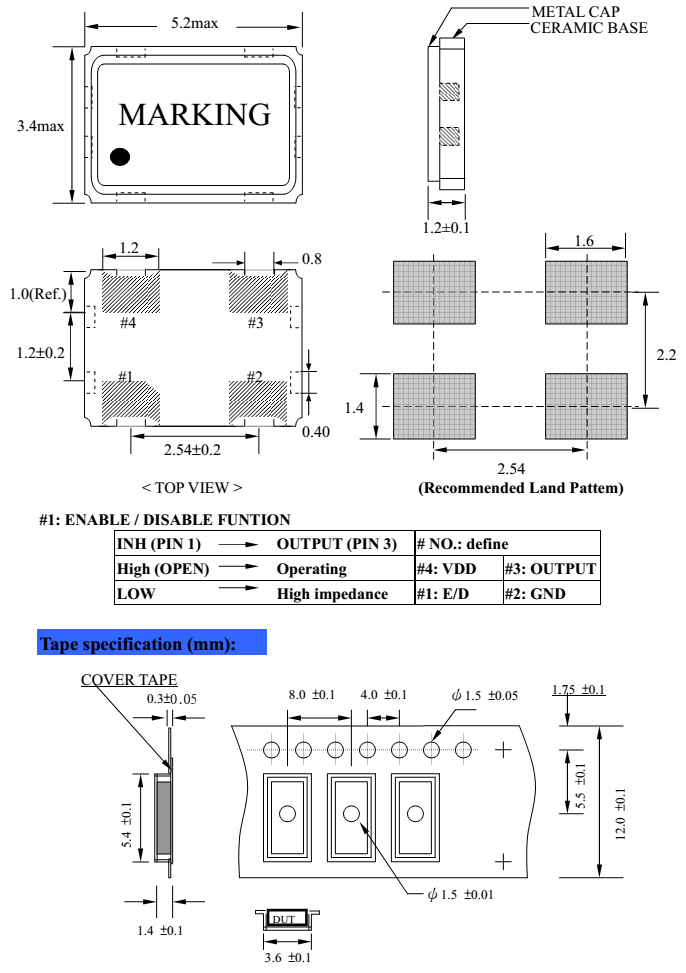

    Dimensions:

    Dimensions

    Dimensions
