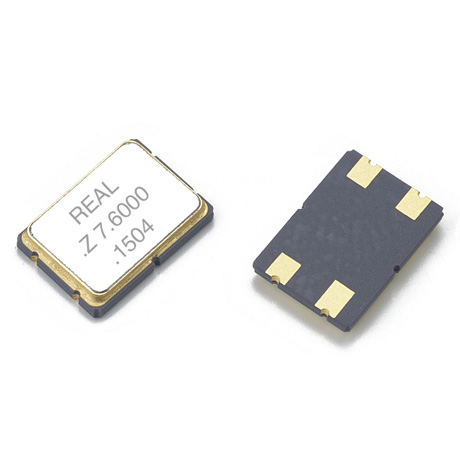

Product Name：7050SMD Series Crystal Resonator
- Product Category：
- Product Details：
Features:
．Seam welding
．Excellent solderability
．Automatic and perfect packing due to emboss taping
．Excellent vibration resistance & shock resistance
．Rohs compliant / Pb free
．Excellent aging performance - E-MAIL:
-
Specification:
| Model | 7050 SMD |
| Frequency Range | 6.0 ~ 125.000MHz |
| Frequency Tolerance at 25°C±2°C | ±10 ~ ±100ppm(TYP.) |
| Frequency Stability Over Operating Temp Range | ±10 ~ ±100ppm(TYP.) |
| Operating Temp Range | -10°C ~+60°C,-20°C~+70°C,or customer requirement |
| Storage Temp Range | -40°C ~ +85°C |
| Aging Rate | ±3ppm/year |
| Load Capacitance | 6pF ~32pf,series or special |
| Shunt Capacitance | 7pf Max |
| Drivel Level | 1uW~100uW(TYP:100uW) |
| Oscillation Mode | Fundamental, 3rd overtone |
| Measure Instrument | S&A 250B |
Equivalent Series Resistance(ESR)VS Frequency:
| Frequency(MHz) | Oscillation Mode | 7050 SMD |
| 6.0~10.0 | Fundamental | 110Ω max |
| 10.1~22.0 | Fundamental | 80Ω |
| 22.1~40.0 | Fundamental | 40Ω |
| 40.1~125.0 | 3rd overtone | 80Ω |

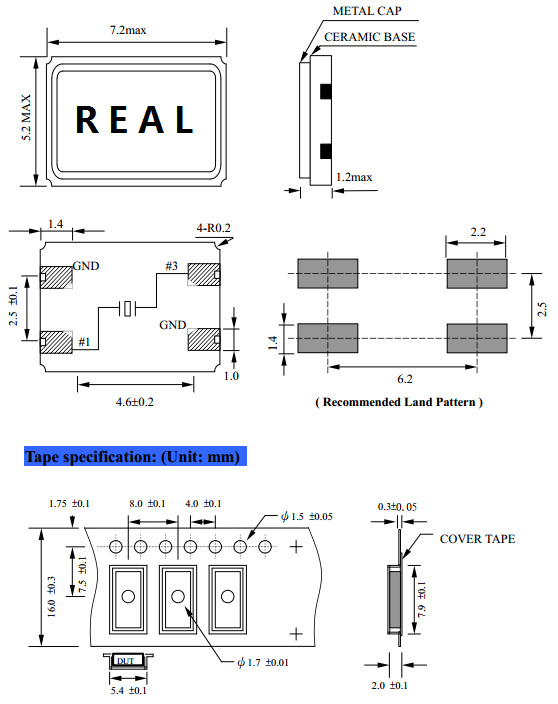

Dimensions:
