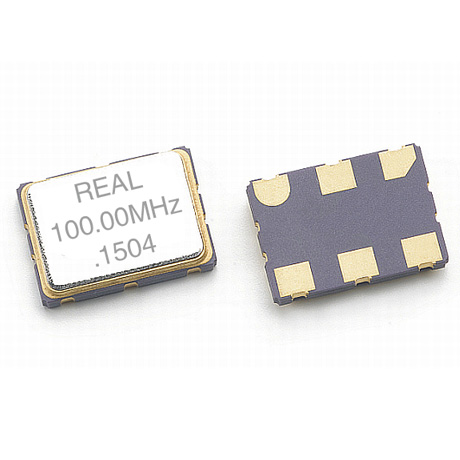

Product Name：LVDS 7050SMD 6PAD OSCILLATORS
- Product Category：
- Product Details：
Features:
．Typical 7.0*5.0*1.75 mm 6 pads ceramic SMD package.
．Very low jitter performance: typical 0.3 pS RMS from 12k-20MHz.
．Wide frequency control range.
．Complementary Output.
．Tir-state enable / disable - E-MAIL:
-
Specification:
| Parameter | Unit | LVDS 7050SMD 6PAD | |||
| 3.3V | 2.5V | ||||
| Min. | Max. | Min. | Max. | ||
| Supply Voltage Variation(VDD) ±5% | V | 3.135 | 3.465 | 2.375 | 2.625 |
| Frequency Range | MHz | 1.5 | 200 | 65 | 200 |
| Standard Frequency | 77.76 , 106.25 , 122.88 , 125 , 155.52 , 156.25 , 200 | ||||
| Absolute Pulling Range (APR) | PPM | ±50 | -- | ±50 | -- |
| Control Voltage Range | V | 0.3 | 3.0 | 0 | 2.5 |
| Supply Current 1.5 MHz ≦Fo＜65 MHz 65 MHz ≦Fo≦200 MHz |
mA | -- | 45 | -- | 45 |
| -- | 80 | -- | 80 | ||
| Output Level Output High (Logic”1”) Output High (Logic”0”) |
V | -- | 1.6 | -- | 1.6 |
| 0.9 | -- | 0.9 | -- | ||
| Transition Time : Rise/Fall Time+ | nSec | -- | 1.0 | -- | 1.0 |
| Start Time | mSec | -- | 3 | -- | 3 |
| Tri-State (input to Pin 2, Enable Low) | |||||
| Enable (Low voltage ro floating) Disable (High voltage ro GND) |
V | -- | 0.99 | -- | 0.75 |
| 2.31 | -- | 1.75 | -- | ||
| Linearity | % | -- | 10 | -- | 10 |
| Modulation Bandwidth(BW) | KHz | 25 | -- | 25 | -- |
| Input Impedance | kΩ | 5000 | --- | 5000 | --- |
| RMS Phase Jitter (Integrated12~20MHz) | |||||
| Fo< 100MHz | pSec | -- | 1 | -- | 1 |
| Aging (@25℃ 1st year | PPM | ±3 | -- | ±3 | -- |
| Storage Temp. Range | ℃ | -55 | 125 | -55 | 125 |
Inclusive of 25℃±3℃&Operating Temperature Range

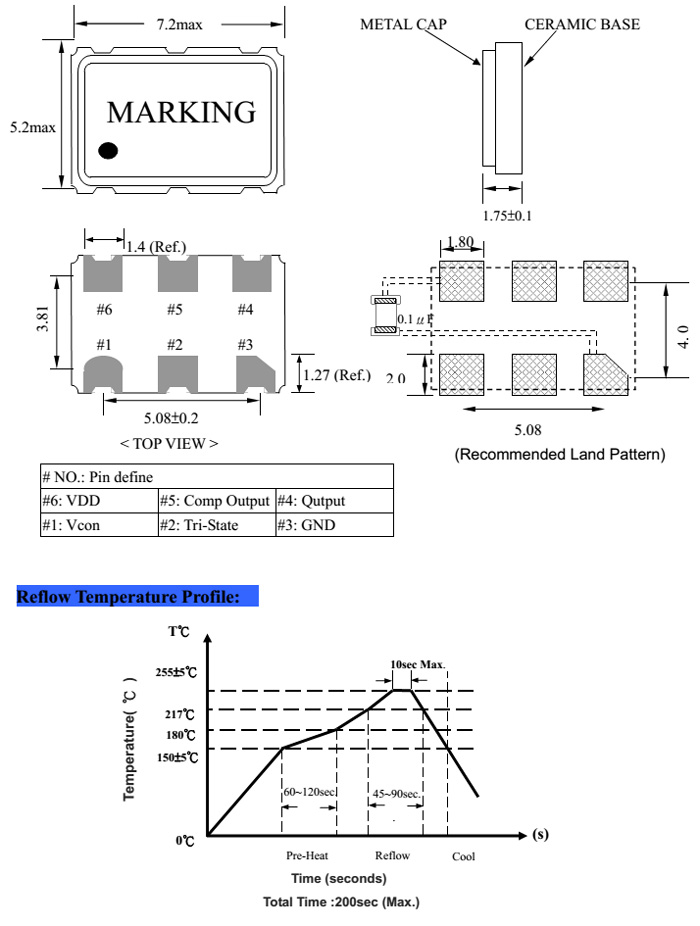

Dimensions:
