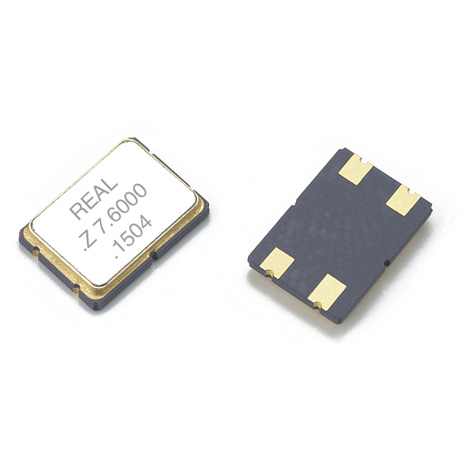

Product Name：7050SMD OSCILLATORS SMD TYPE CERAMIC
- Product Category：
- Product Details：
Features:
． Seam welding
． Excellent solderability
． Automatic and perfect packing due to emboss taping
． Excellent vibration resistance & shock resistance
． Rohs compliant / Pb free - E-MAIL:
-
Specification:
| Model | 7050 SMD | |||||
| Frequency Range | MHz | 1.0 ~ 125.000MHz | ||||
| Frequency Stability | ppM | A:±100 B: ±50 C:±30 D:±25 | ||||
| Environmental Condition | ||||||
| Operating Temp Range | °C | 0 ~ 70 , -40 ~ 85 | ||||
| Storage Temp Range | -55 ~ 125 | |||||
| Output Level | CMOS | |||||
| Output Symmetry | % | 40% ~ 60% or 45% ~ 55%(at 55%V DC) | ||||
| Power Supply Voltage | V DC | 5.0V±10% | 3.3V±10% | 2.8V±10% | 2.5V±10% | 1.8V±10% |
| Input Current | ||||||
| 1.0 ~ 9.99 MHz | mA | 20 | 7 | 6 | 6 | 5 |
| 10.0 ~ 19.99 MHz | 20 | 7 | 8 | 8 | 6 | |
| 20.0 ~ 31.99 MHz | 25 | 12 | 8 | 8 | 6 | |
| 32.0 ~ 49.99 MHz | 35 | 20 | 20 | 20 | 15 | |
| 50.0 ~ 79.99 MHz | 50 | 25 | 20 | 20 | 15 | |
| 80.0 ~ 99.99 MHz | 60 | 30 | 25 | 20 | ||
| 100.0 ~ 125.0 MHz | 80 | 40 | 30 | 25 | ||
| Rise and Fall Time | ||||||
| 1.0 ~ 9.99 MHz | ns | 15 | 20 | 5 | 5 | 5 |
| 10.0 ~ 19.99 MHz | 15 | 15 | 5 | 5 | 5 | |
| 20.0 ~ 31.99 MHz | 15 | 10 | 5 | 5 | 5 | |
| 32.0 ~ 49.99 MHz | 15 | 10 | 5 | 5 | 5 | |
| 50.0 ~ 79.99 MHz | 10 | 8 | 5 | 5 | 4 | |
| 80.0 ~ 99.99 MHz | 10 | 5 | 5 | 5 | 3 | |
| 100.0 ~ 125.0 MHz | 10 | 4 | 5 | 5 | 3 | |
| Output Load | 15pF | |||||

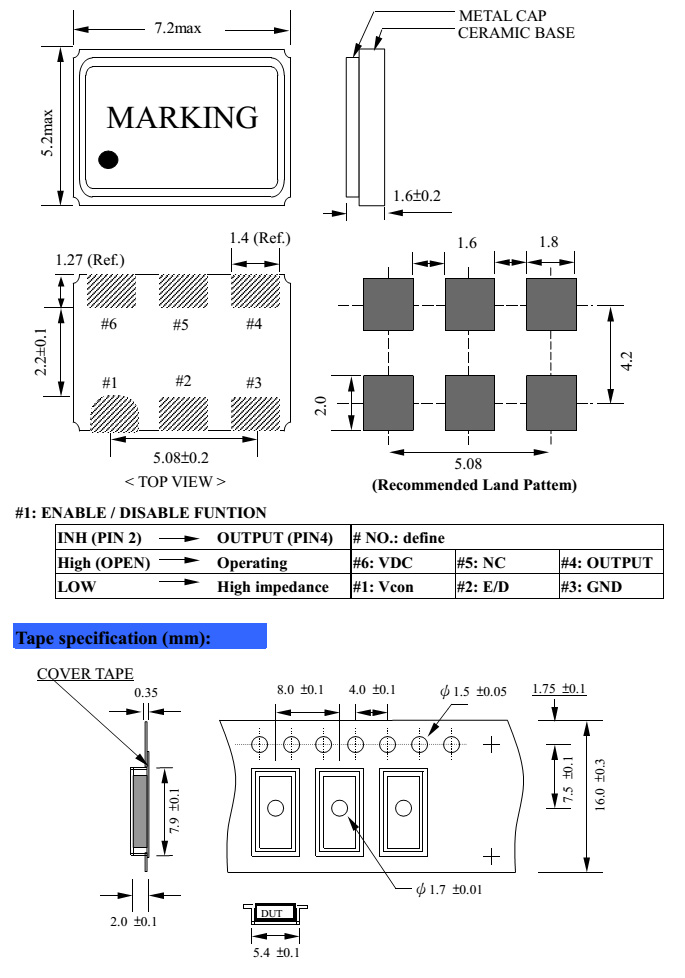

Dimensions:
