Product Name：AT308 AT206 Series Crystal Resonator
- Product Category：
- Product Details：
Features:
. High stability assured with tight vacuum sealing
. High vibration and shock resistance
. Excellent environmental capability - E-MAIL:
-
Specification:
| Model | Ø3X8 | Ø2X6 |
| Frequency Range | 3.579 ~ 50MHz | 4.000 ~ 50MHz |
| Frequency Tolerance at 25°C±2°C | ±10 ~ ±50ppm(TYP.) | |
| Frequency Stability Over Operating Temp Range | ±10 ~ ±50ppm(TYP.) | |
| Operating Temp Range | -10°C ~+60°C, -20°C ~+70°C, -40°C ~+85°C or customer requirement | |
| Load Capacitance | 12pF ~30pf,series or special | |
| Shunt Capacitance | 3.0pf (TYP). | |
| Drivel Level | 10uW~100uW(TYP:100uW) | |
| Insulation Resistance | 500MΩ min / DC 100V±15V | |
| Oscillation Mode | Fundamental, 3rd overtone | |
Equivalent Series Resistance(ESR)VS Frequency:
| Frequency(MHz) | Oscillation Mode | Ø3X8 Ø2X6 |
| 3.57 ~ 3.99 | Fundamental | 180Ω max |
| 4.00 ~ 4.49 | Fundamental | 150Ω |
| 4.50 ~ 4.99 | Fundamental | 120Ω |
| 5.00 ~ 6.99 | Fundamental | 100Ω |
| 7.00 ~ 9.99 | Fundamental | 80Ω |
| 10.0 ~ 11.99 | Fundamental | 60Ω |
| 12.0 ~ 29.99 | Fundamental | 40Ω |
| 30.0 ~ 50.00 | 3rd overtone | 80Ω |

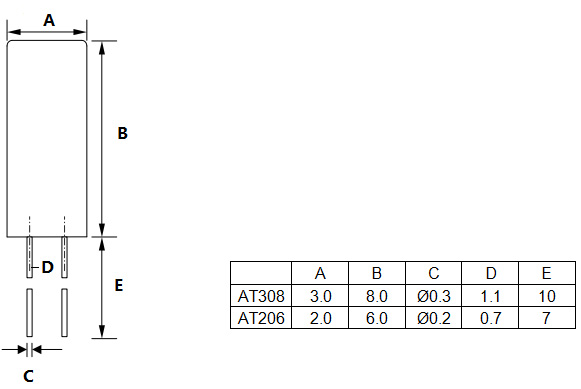

Dimensions:
