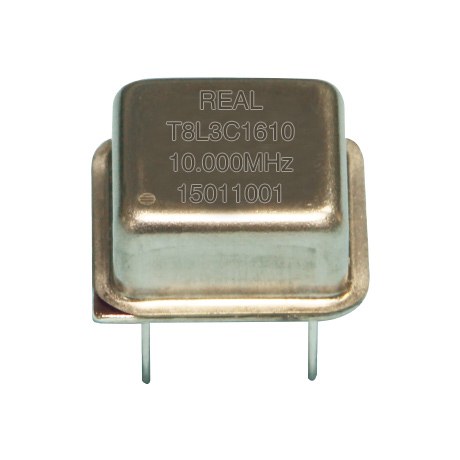

Product Name：DIP08 Crystal Oscillator
- Product Category：
- Product Details：
Features:
Frequency temperature stability±10×10-6 Max.
Working voltage：5.0V or 3.3V
TTL/HCMOS compatible
Symmetry：45%-55%
14-stitch full-size
Optional three-state control function
Wide frequency range
Lead-free green product - E-MAIL:
-
Specification:
| Model | Condition | DIP08 | ||
| Frequency Range F0 | 20KHz ~ 160.000MHz | |||
| Frequency Stability | All Condition | See table | ||
| Operating Temp Range TOPR | See table | |||
| Supply Voltage VDD | B: 5.0VDC±10% | A: 3.0VDC±10% | ||
| Supply Current LDD | 20.0K≤F0<24M | 20mA Max. | 15mA Max. | |
| 24M≤F0<50M | 30mA Max. | 20mA Max. | ||
| 50M≤F0≤160M | 40mA Max. | 30mA Max. | ||
| Output Wave / Load | A: TTL 15pF C: CMOS 15pF B: TTL 50pF C: CMOS 50pF |
|||
| Stand-by Function (Tri-state) | N: Fixed-Frequency without Tri-State Y: Fixed-Frequency with Tri-State |
|||
| Output Duty | 1.4V or 50%VDD | 45%~55% | ||
| Rise Time TR | 10ns Max | |||
| Fall Time TF | 10ns Max | |||
| Output Voltage | “0”Level | 0.4V Max. or 10%VDD | ||
| “1”Level | 2.4V Min. or 90%VDD | |||
| Start-Up Time TS | 10mS Max. | |||
| Aging | ±5ppM Max | |||
| Storage Temp Range | -55°C~+125°C | |||
| Package | 08PIN DIP | |||
Electrical Specifications(Characteristics):
| Temperature Range | Frequency Stability | |||
| O: ±10ppm | O: ±25ppm | O: ±50ppm | O: ±100ppm | |
| A:0°C~+50°C | ● | ● | ● | ● |
| B:-10°C~+60°C | ● | ● | ● | ● |
| C:-20°C~+70°C | ● | ● | ● | ● |
| △G:-40°C~+85°C | ● | ● | ● | |
| ☆J:-55°C~+125°C | ◎ | ◎ | ||
◎Specially designated products.
PART NUMBER GENERATION:
OSC-DIP08 series oscillator part numbers are derived as follows:Example:
Dimensions:
