Product Name:DIP14 Crystal Oscillator

  • Product Category:
    • Product Details:
      Features:
      .Frequency temperature stability±10×10-6 Max
      .Working voltage:5.0V or 3.3V
      .TTL/HCMOS compatible
      .Symmetry:45%-55%
      .14-stitch full-size
      .Optional three-state control function
      .Wide frequency range
      .Lead-free green product
    • E-MAIL:

    Specification:

    Model Condition DIP14
    Frequency Range        F0   20KHz ~ 160.000MHz
    Frequency Stability All Condition See table
    Operating Temp Range   TOPR   See table
    Supply Voltage           VDD   B:  5.0VDC±10% A:  3.0VDC±10%
    Supply Current           LDD 20.0K≤F0<24M 20mA Max. 15mA Max.
    24M≤F0<50M 30mA Max. 20mA Max.
    50M≤F0≤160M 40mA Max. 30mA Max.
    Output Wave / Load   A: TTL 15pF             C:  CMOS 15pF B: TTL 50pF             C:  CMOS 50pF
    Stand-by Function (Tri-state)   N: Fixed-Frequency  without  Tri-State Y: Fixed-Frequency  with  Tri-State
    Output Duty 1.4V or 50%VDD 45%~55%
    Rise Time                TR   10ns Max
    Fall Time                 TF   10ns Max
    Output Voltage “0”Level   0.4V Max. or 10%VDD
    “1”Level   2.4V Min. or 90%VDD
    Start-Up Time             TS   10mS Max.
    Aging   ±5ppM Max
    Storage Temp Range   -55°C~+125°C
    Package   14PIN DIP

    Electrical Specifications(Characteristics):

    Temperature Range Frequency Stability
    O: ±10ppm O: ±25ppm O: ±50ppm O: ±100ppm
    A:0°C~+50°C
    B:-10°C~+60°C
    C:-20°C~+70°C
    △G:-40°C~+85°C
    ☆J:-55°C~+125°C

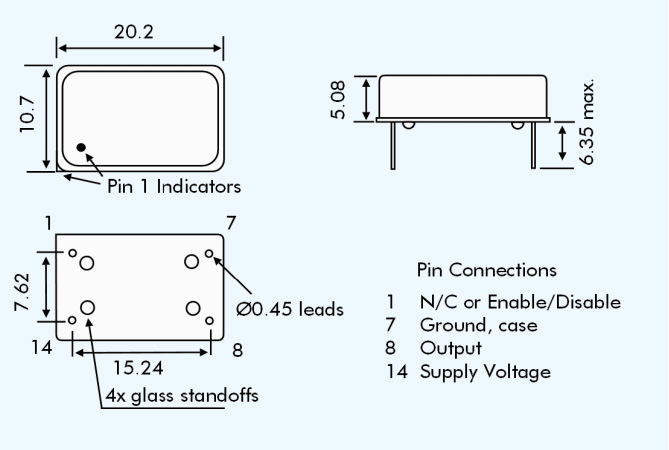

    Dimensions:

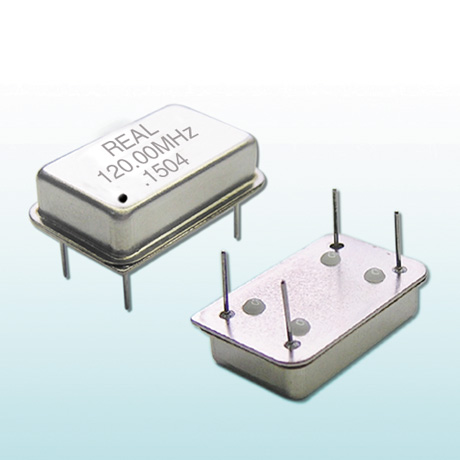

    DIP14 Crystal Oscillator

    Contact Realgiant

    Beijing Realgiant Technology Development Co., Ltd.Contact Realgiant

    Contact Realgiant Tel: +86-10-64156778

    Contact Realgiant Fax: +86-10-64156778

    Contact Realgiant Email: sales@crystal-bj.com

    Contact Realgiant Add: No. 9# Chaowai North Street,Chaoyang District, BEIJING
