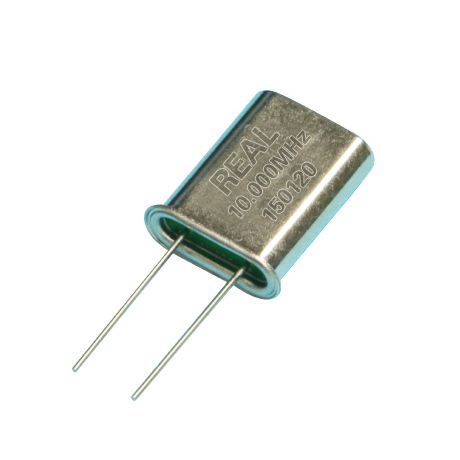

Product Name：HC-43U Series Crystal Resonator
- Product Category：
- Product Details：
Features:
． Excellent aging performance
． Mass production capability
． High reliability design
． RoHS Compliant / Pb Free
． Customized as request - E-MAIL:
-
Specification:
| Item | symbol | Specification | |||
| Min. | Max. | Unit | |||
|
Material |
- | Quartz / Gold | - | ||
|
Frequency |
F0 | 8.192~200 | MHz | ||
|
Holder |
- | 43U(Cold press welding) | - | ||
|
Cut / Overtone |
- | SC / 3 & 5 & 7 | - | ||
|
Blank Surface Finish |
- | Polished(>3μm per side) | - | ||
|
Insulation Resistance |
- | 500 | MΩ | ||
|
Turnover point |
TP1 | 60 | 120 | °C | |
|
Turnover point deviation |
±(1~10) | °C | |||
|
Frequency Tolerance |
- | ±(0.5~3) | ppm | ||
|
Dynamic capacitance |
C1 | 0.1 | 10 | fF | |
|
Static capacitance |
C0 | 2 | 6 | pF | |
|
Serial resistance |
R1 | 10 | 150 | Ω | |
|
Q factor |
Q | 100 | 1500 | K | |
|
Aging in year |
DF/F | ±(0.01~0.1) | ppm | ||
|
Storage temperature range |
Tstg | -55 | 125 | °C | |
|
Standard Frequency |
MHz | 8.192 / 8.666 / 10 / 12.8 / 13 / 16.384 / 19.2 / 19.44 / 20 / 25 / 26 / 30.72 / 40 / 60 / 80 / 100 | |||

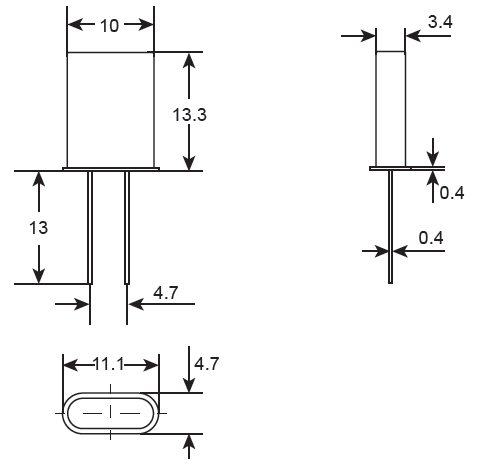

Dimensions:(Unit: mm)
.png "Dimensions")
