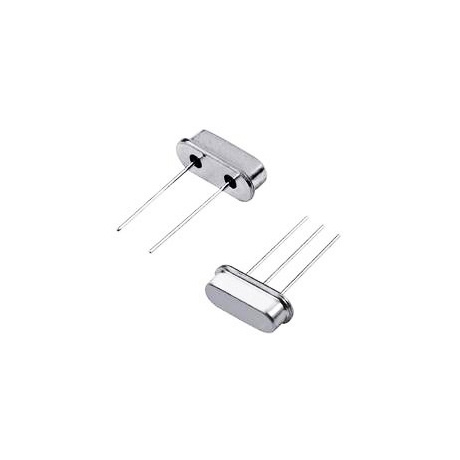

Product Name:HC-49S/49SS/3L Series Crystal Resonator

  • Product Category:
    • Product Details:
      Features:
      . Low cost
      . Industry standard package
      . High reliability and stability crystal
      . Wide frequency range and calibration tolerances
      . Available
      . Rohs compliant / Pb free
    • E-MAIL:

    Specification:

    Model HC-49S / 49SS/49S-3L
    Frequency Range 3.570 ~ 100.000MHz
    Frequency Tolerance at 25°C±2°C ±20 ~ ±50ppm(TYP.)
    Frequency Stability Over Operating Temp Range ±10 ~ ±50ppm(TYP.)
    Operating Temp Range -10°C ~+60°C, -20°C ~+70°C, -40°C ~+85°C or customer requirement
    Load Capacitance 8pF ~32pf,series or special
    Shunt Capacitance 7pf Max
    Drivel Level 0.1uW~1000Uw(TYP:100uw)
    Insulation Resistance 500MΩ min / DC 100V±15V
    Oscillation Mode Fundamental,3rd & 5th overtone
    Measure Instrument S&A 250B



    Equivalent Series Resistance(ESR)VS Frequency:

    Frequency(MHz) Oscillation Mode HC-49S/49SS/49S-3L
    3.57 ~ 3.79 Fundamental 180Ω max
    3.8 ~ 4.49 Fundamental 150Ω
    4.5 ~ 5.99 Fundamental 120Ω
    6.0 ~ 7.99 Fundamental 100Ω
    8.0 ~ 9.99 Fundamental 80Ω
    10.0 ~ 11.99 Fundamental 70Ω
    12.0 ~ 15.99 Fundamental 60Ω
    16.0 ~ 19.99 Fundamental 50Ω
    20.0 ~ 39.99 Fundamental 40Ω
    26.0 ~ 39.99 3rd overtone 100Ω
    40.0 ~ 70.0 3rd overtone 80Ω
    70.0 ~ 100.0 3rd overtone 100Ω

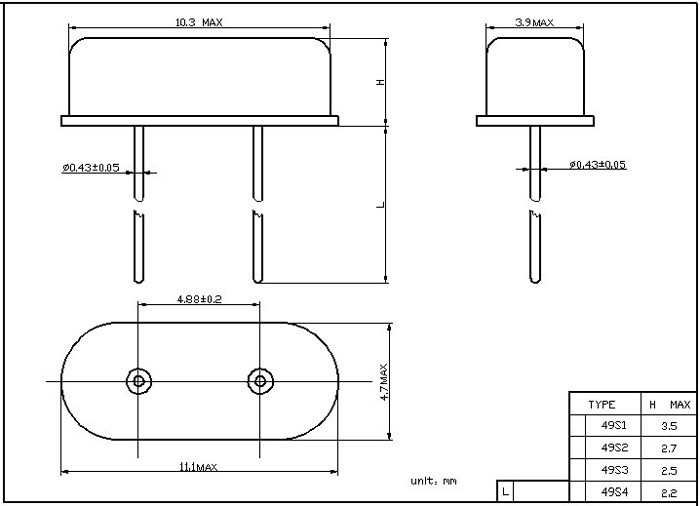

    Dimensions:

    Dimensions

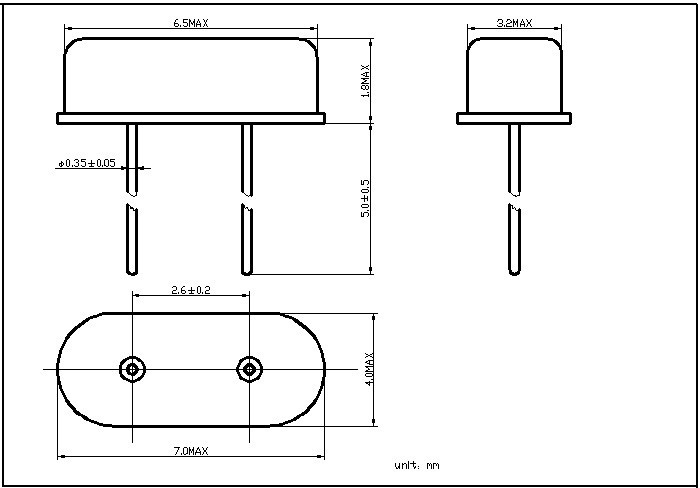

    Dimensions:(HC-49S-3L)
