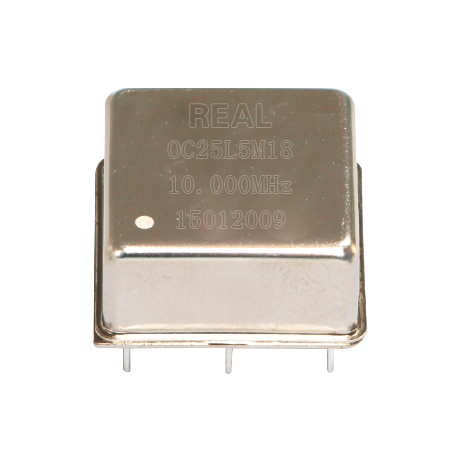

Product Name:OCXO 2020

  • Product Category:
    • Product Details:
      Features:
      . High reliability
      . Excellent phase noise
      . Mass production with good uniformity
      . ISO9001:2008 & ISO 14001:2004 certificated
      . ROHS compliant
      . Custom build capability
    • E-MAIL:

    Specification:

    Parameter Min Typ. Max Unit Condition Note
    Frequency Stability
    Frequency 5.0   100.0 MHz
    Initial Frequency Accuracy -200   +200 ppb Vc=2.0V/ @25℃,after 15mins power on ref to nominal frequency.
    Supply Variation   -1.0   +1.0 ppb Vs±5%, @25℃
    Load Variation   -1.0   +1.0 ppb CL±5%, @25℃
    Aging per day -0.3   +0.3 ppb Aging after 30 days of operation For 10.000MHz operational frequency
    first year -80   +80 ppb
    10 years -0.4   +0.4 ppm
    Temperature Stability -10   +10 ppb -20℃~+70℃ @ 25℃
    Short Tem Stability ( in still air)     0.05 ppb/s after power on 1hour@25℃
    Warm -up  time     5 min Vc=2.0V,@+25℃,Within ±10PPb of final frequency with reference after 1 hour on
    Freq  Retrace  Characteristics -10   +10 ppb Power on 24hs, then off 24hs, switch on again, after 0.5h ,measure freq.vs. frequency prior to power off.
    Supply Voltage/Current

    Voltage Supply

    4.75 5.0 5.25 V
    Operating  Current     600 mA during warm up
        250 mA at steady state
    Output Characteristics
    CMOS Load   15   pF
    Output Level(VOL)     0.5 V
    Output Level(VOH) 3.8     V
    Duty Cycle 45   55 %
    Rise Time/ Fall Time     5 ns
    Sine-Wave Load   50   Ω
    Level 5 7 9 dBm
    Harmonics Level     -40 dBc
    Spurious     -70 dBc
    Phase Noise
    Phase Noise     -90 dBc/Hz @1Hz For 10.00MHz operational frequency
        -120 @10Hz
        -140 @100Hz
        -145 @1KHz
        -150 @10KHz
        -155 @100KHz
    Voltage Control Characteristics
    Control Voltage Range 0 2.0 4.0 V
    Frequency tuning range -2.4   -0.8 ppm Vc=0V For 10.00MHz operational frequency
    -200   +200 ppm Vc=2.0V
    +0.8   +2.4 ppm Vc=4V
    Slope Positive
    Linearity -10   +10 %
    Input Impedance 100
    Mechanical specification & Package
    Package Size Refer to the below drawing
    Pin Connector Size
    Pin Connector Definition
    ROHS RoHS compliant(network exempted)



    Environmental, Mechanical Conditions
    Operating temp  range -20℃~+70℃
    Operable temp  range -40℃~+85℃
    Storage temp  range -50℃~+105℃
    Drop Test The test shall be carried out as the provisions of the IEC60028-2-32 test Ed.
    10cm height, 3 times on hard board with thickness of 3cm
    Bumping Test Device are bumped to three mutually perpendicular axes at peak acceleration of
    400m/s², each 4000±10 times , 6ms pulse duration time.
    Vibration test Frequency range: 1Hz-4Hz-100Hz-200Hz
    Acceleration: 0.0001g²/Hz-0.01g²/Hz-0.01g²/Hz-0.001g²/Hz
    Grms=1.15g
    Sweep time: 30 minutes (perpendicular axes each sweep time)
    Mechanical Shock 100g, 6mS duration, 1/2 sine wave, 3 shocks each direction along 3 mutually perpendicular planes.
    Thermal shock 0.5h@-40℃,0.5h@+85℃,Note: the changing time < 30 seconds, cycling for 100 times

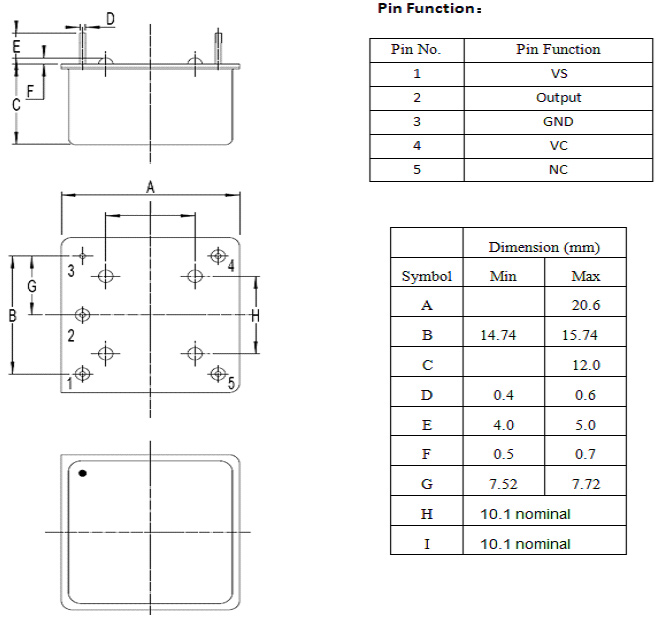

    Dimensions:

    Dimensions
