Current location: Home»Realgiant Product » OCXO OCDIP14

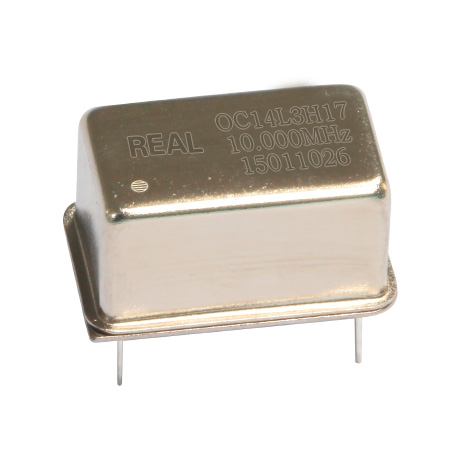

Product Name:OCXO OCDIP14

Specification:

Parameter Min Typ. Max Unit Condition Note
Frequency Stability
Frequency 5.0   100.0 MHz
Initial Frequency Accuracy -200   +200 ppb Vc=1.65V/ @25℃,after 15mins power on ref to nominal frequency.
Supply Variation   -5   +5 ppb Vs±5%, @25℃
Load Variation   -5   +5 ppb CL±5%, @25℃
Aging per day -1   +1 ppb Aging after 30 days of operation For 10.000MHz operational frequency
first year -150   +150 ppb
10 years -1.2   +1.2 ppm
Temperature Stability -20   +20 ppb -20℃~+70℃ @ 25℃
Short Tem Stability ( in still air)     0.05 ppb/s after power on 1hour@25℃
Warm -up  time     5 min Vc=1.65V,@+25℃,Within ±10PPb of final frequency with reference after 1 hour on
Freq  Retrace  Characteristics -10   +10 ppb Power on 24hs, then off 24hs, switch on again, after 0.5h ,measure freq.vs. frequency prior to power off.
Supply Voltage/Current

Voltage Supply

3.135 3.3 3.465 V
Operating  Current     800 mA during warm up
    200 mA at steady state
Output Characteristics
CMOS Load   15   pF
Output Level(VOL)     0.4 V
Output Level(VOH) 2.4     V
Duty Cycle 45   55 %
Rise Time/ Fall Time     5 ns
Sine-Wave Load   50   Ω
Level 5 7 9 dBm
Harmonics Level     -40 dBc
Spurious     -70 dBc
Phase Noise
Phase Noise     -85 dBc/Hz @1Hz For 19.200MHz operational frequency
    -115 @10Hz
    -135 @100Hz
    -148 @1KHz
    -152 @10KHz
    -155 @100KHz
Voltage Control Characteristics
Control Voltage Range 0 1.65 3.3 V
Frequency tuning range -3.0   -1.5 ppm Vc=0V For 19.200MHz operational frequency
-200   +200 ppm Vc=1.65V
+1.5   +3.0 ppm Vc=3.3V
Slope Positive
Linearity -10   +10 %
Input Impedance 100
Mechanical specification & Package
Package Size Refer to the below drawing
Pin Connector Size
Pin Connector Definition
ROHS RoHS compliant(network exempted)

Environmental, Mechanical Conditions
Operating temp  range -40℃~+85℃
Operable temp  range -40℃~+85℃
Storage temp  range -50℃~+105℃
Drop Test The test shall be carried out as the provisions of the IEC60028-2-32 test Ed.
10cm height, 3 times on hard board with thickness of 3cm
