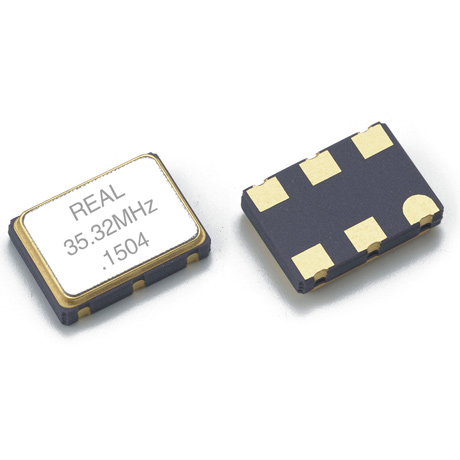

Product Name：VC5032SMD 6PAD
- Product Category：
- Product Details：
Features:
． Excellent environmental capability
． Frequency adjustable
． Supply voltage:3.3V or 2.5V
． Low power consumption
． High accuracy and high reliability - E-MAIL:
-
Specification:
| Model | VC5032 SMD 6PAD | |
| Frequency Range | MHz | 12.0 ~ 35.328MHz |
| Output Type | CMOS | |
| Frequency Stability | ppM | ±25 ~ ±50 min.( Vcon at 50% VDC) |
| Voltage Vol ( Max.) / Voh ( Min.) |
0.1 VDD / 0.9 VDD | |
| Operating Temp Range | °C | -20 ~ 70 , or specify |
| Storage Temp Range | -55 ~ 125 | |
| Pullability | PPM | ±50 ~ ±100 min , or specify |
| Power Supply Voltage | V DC | 3.3V±10% or 2.5V±10% |
| Output Symmetry | % | 40% ~ 60% or 45% ~ 55% |
| Input Current | mA max | 30 mA max |
| Output Load | 15 pF | |
| Rise and Fall Time | ns max | 10 ns max |

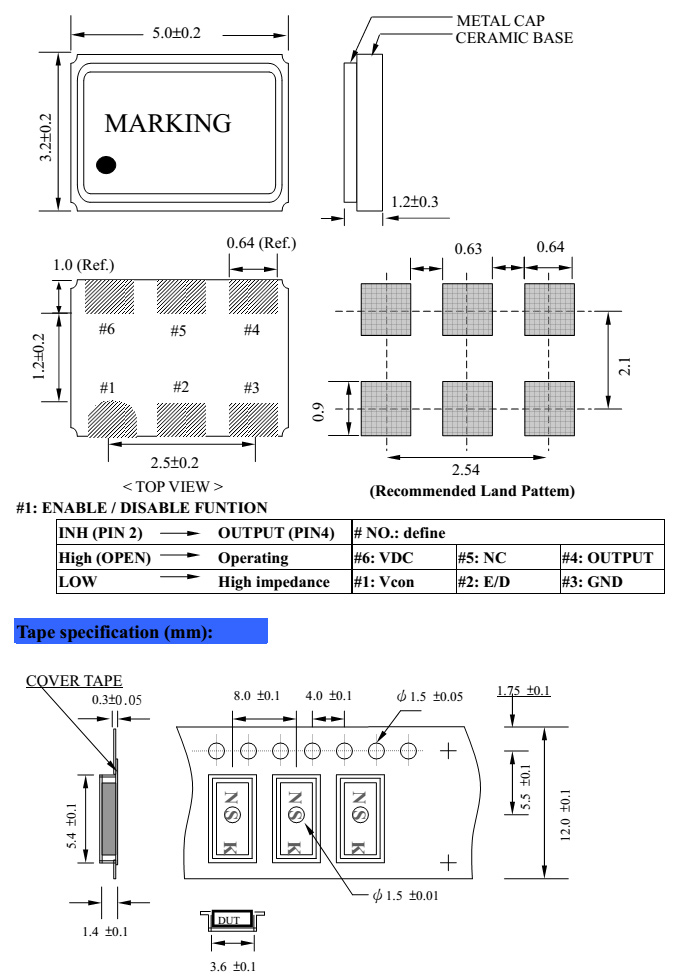

Dimensions:
